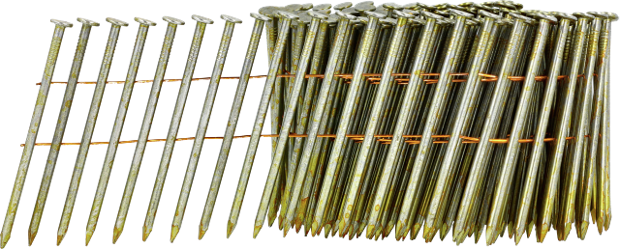

2,87mm plokščia lygių vinių ritė, šviesi bazinė, Sencoted

spustelėkite paveikslėlį, kad padidintumėte vaizdą

Aprašymas

2,87mm plokščia lygių vinių ritė, šviesi bazinė, Sencoted

Skaityti daugiau Skaityti mažiau

Taikymo sritys

Rėmai, Grindų paklotai, Santvaros, Padėklai ir dėžės

Skaityti daugiau Skaityti mažiau

Darnusis standartas EN 14592:2008+A1:2012

Prašyti informacijos

Specifikacijos

Techninės specifikacijos

Sugretinimo kampas: 16 °
Tipo suvyniojimas: Plokščias
Sujungimo rūšis: Vielinis sujungimas
Vielos medžiaga: Anglinis plienas (standartinio tempimo)

Tvirtinimo detalių specifikacijos

Apdaila: Šviesus bazinis, standartinio tempimo
Danga: „Sencoted“
Naudojimo aplinka: Vidus
Vinies rūšis: Vinių ritės
Vinies strypelio rūšis: Lygus strypelis
Galiuko tipas: Deimantas
Galiuko kampas: 40 °
Mažiausias aukštis: 8.4 mm
Didžiausias aukštis: 8.4 mm
Didžiausio išorinio skersmens ritė: 122 mm
Naglu diametrs: 2.87 mm
