Plieno tvirtinimo prie plieno varžtas PH2 skaidrus cinkas 4,8x19mm

spustelėkite paveikslėlį, kad padidintumėte vaizdą

Aprašymas

Plieno tvirtinimo prie plieno varžtas, skaidrus cinkas

Skaityti daugiau Skaityti mažiau

Taikymo sritys

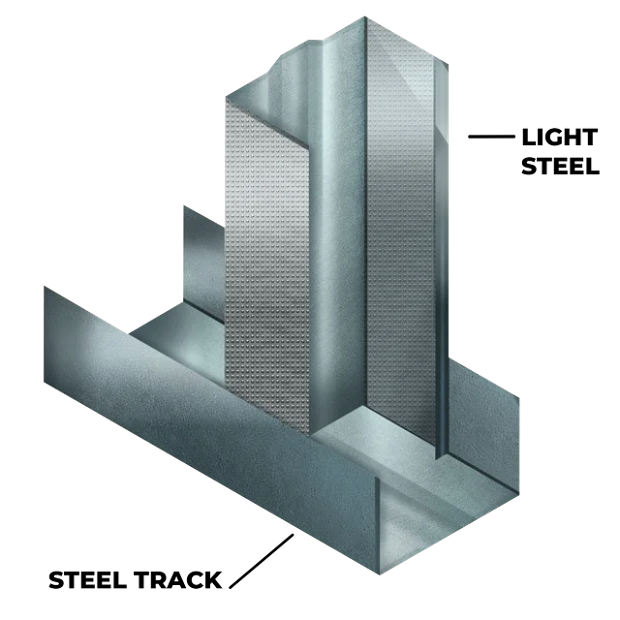

Plienui prie plieno

Skaityti daugiau Skaityti mažiau

Darnusis standartas EN 14566:2008+A1:2009

Prašyti informacijos

Specifikacijos

Identifikavimas

Prekės numeris: 48IP19MC
GTIN: 8715274028149

Techninės specifikacijos

Sujungimo rūšis: Plastikinis sujungimas
Vielos medžiaga: Anglinis plienas (standartinio tempimo)
Sūkiai per minutę: 2300, 2500, 3000, 3300 RPM

Tvirtinimo detalių specifikacijos

Apdaila: Skaidrus cinkas
Naudojimo aplinka: Vidus
Galiuko tipas: 17 tipo pjovimo taškas
Galiuko kampas: 110 °
Varžto galvutės rūšis: Plokščias
Varžto įpjova: „Philips“ 2
Varžto sriegio tipas: Tek
Tvirtinimo detalių kiekis ant juostos / ritės: 50 - 50
Varžto ilgis: 19.0 mm
Varžto skersmuo: 4.8 mm

CE specifikacijos

DOP No: 48IP19MC
Priežiūros kategorija: 1
Vidinis sriegio skersmuo: 3.8 mm
Sraigtinės dalies ilgis: 13.9 mm
Darnusis standartas: EN 14566:2008+A1:2009

Netechninės specifikacijos

Pakuotės kiekis: 1000

Logistikos specifikacijos

Grynas svoris: 2.4 kg

Susiję įrankiai

Atsisiuntimai

48IP19MC_lt_CommercialProductSheet_1.5_1752233808763 PDF 1 Mb
48IP19MC_lt_DeclarationOfPerformanceDoP_1.1eu_1750109913073 PDF 60 Kb
