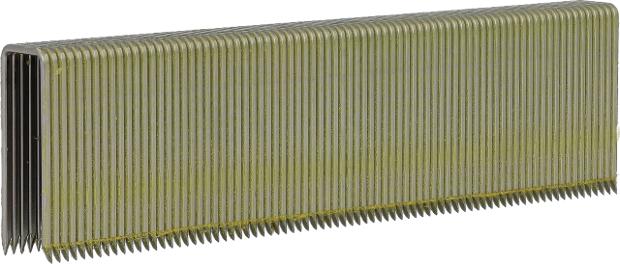

M kabė, skirtingo galandinimo kampo, AISI304

spustelėkite paveikslėlį, kad padidintumėte vaizdą

Aprašymas

Skaityti daugiau Skaityti mažiau

Taikymo sritys

Spintelės, Apvadai, Stalčiai, Apmušalai, Stoglangiai, Paklotas, Grotelės, Apvalkalai

Skaityti daugiau Skaityti mažiau

Prašyti informacijos

Specifikacijos

Techninės specifikacijos

Sugretinimo kampas: 0 °
Sujungimo rūšis: Sujungimas klijais
Vielos medžiaga: Nerūdijantis plienas AISI 304 (A2)

Tvirtinimo detalių specifikacijos

Danga: Paprastas
Naudojimo aplinka: Laukas
Galiuko tipas: Skirtingo galandinimo kampo
Galiuko kampas: 70 °
Kabės rūšis: Vidutinės vielos kabė
Kabės storis: 1.04 mm
Kabės vielos dydis: 1.17 mm
Nominalusis kabės viršaus plotis: 9.5 mm
Kabės vidinis plotis: 7.67 mm
Tűzőkapocs sorozat: M tipo kabė
