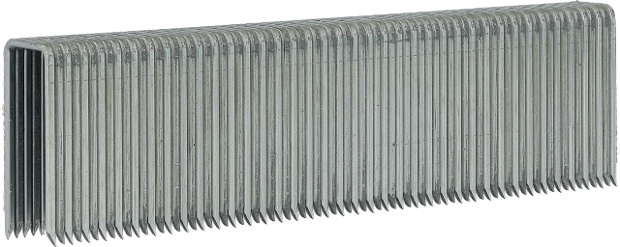

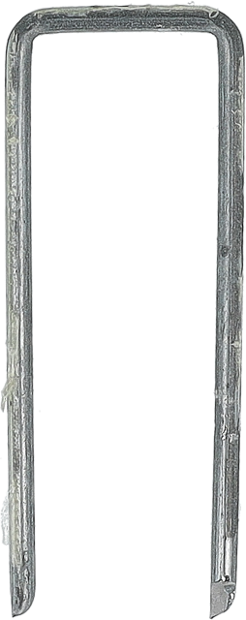

M kabė, 25 mm

spustelėkite paveikslėlį, kad padidintumėte vaizdą

Aprašymas

M kabė, cinkuota, skirtingo galandinimo kampo

Skaityti daugiau Skaityti mažiau

Taikymo sritys

Spintelės, Apvadai, Stalčiai, Apmušalai, Stoglangiai, Paklotas, Grotelės, Apvalkalai

Skaityti daugiau Skaityti mažiau

Prašyti informacijos

Specifikacijos

Identifikavimas

Prekės numeris: M13FAA
GTIN: 8715274018713

Techninės specifikacijos

Sugretinimo kampas: 0 °
Sujungimo rūšis: Sujungimas klijais
Vielos medžiaga: Anglinis plienas (standartinio tempimo)
Matuoklis: 18

Tvirtinimo detalių specifikacijos

Apdaila: Paprastas cinkuotas
Danga: Paprastas
Naudojimo aplinka: Vidus
Galiuko tipas: Skirtingo galandinimo kampo
Galiuko kampas: 70 °
Kabės rūšis: Vidutinės vielos kabė
Kabės storis: 1.04 mm
Kabės vielos dydis: 1.17 mm
Nominalusis kabės viršaus plotis: 9.5 mm
Kabės vidinis plotis: 7.67 mm
Tűzőkapocs sorozat: M tipo kabė
Tvirtinimo detalių kiekis ant juostos / ritės: 78 - 80
Nominalusis kabės kojelės ilgis: 25.0 mm

Netechninės specifikacijos

Pakuotės kiekis: 5000

Logistikos specifikacijos

Grynas svoris: 2.47 kg

Susiję įrankiai

Žiūrėti visus

Atsisiuntimai

M13FAA_lt_CommercialProductSheet_1.5_1752279220920 PDF 1 Mb
